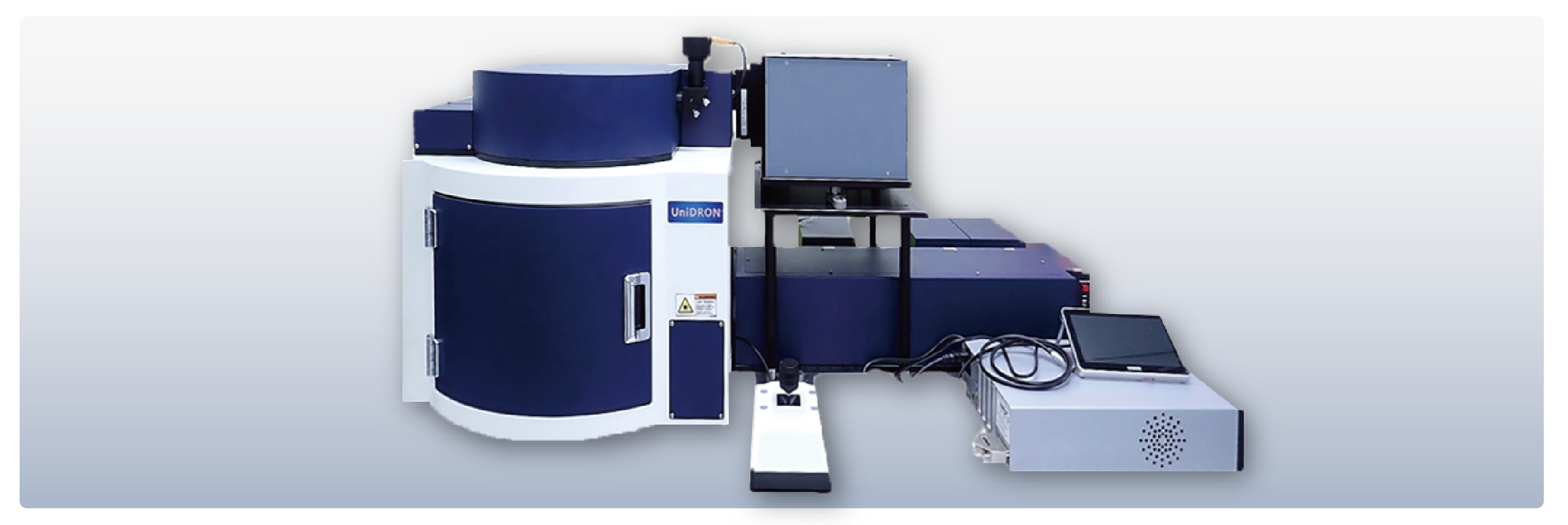

UniDRON - Confocal Spectroscopy Platform

Micro / Nano Raman / PL / TRPL / FLIM
High spectral detail, less ambiguity
One platform, multiple measurement modes


The Confocal Micro / Nano Raman System delivers high-resolution confocal Raman spectroscopy with motorized multi-laser excitation and low-noise detection options for materials characterization and QA / QC. The platform is expandable with 2D scanning, TCSPC-based TRPL / FLIM, and nanoscale modalities including AFM / NSOM and TERS.


Feature & Benefits

  • High spectral sampling / resolution capability (Raman shift sampling < 0.1 cm-1 / pixel*)
  • Up to four gratings selectable (optimize resolution vs. throughput)
  • High-sensitivity detection options (TE-cooled detector / TCSPC-ready)
  • Double-edge / notch filter options (optimized Rayleigh rejection)
  • Flexible multi-wavelength excitation (up to 15 laser wavelengths available, configurable)
  • Motorized microscope chamber (automated laser switching for up to 5 onboard lasers)
  • Laser safety protection (door interlock / key switch / E-stop)
  • Micro-ARC photo-corrosion protection (improved long-term stability)
      * Depends on grating, focal length, slit and detector configuration


Application

  • In-situ Raman
  • Raman Confocal Imaging
  • Multi-Laser Excitation
  • QA / QC
  • Multi-Layer Raman Spectroscopy Imaging

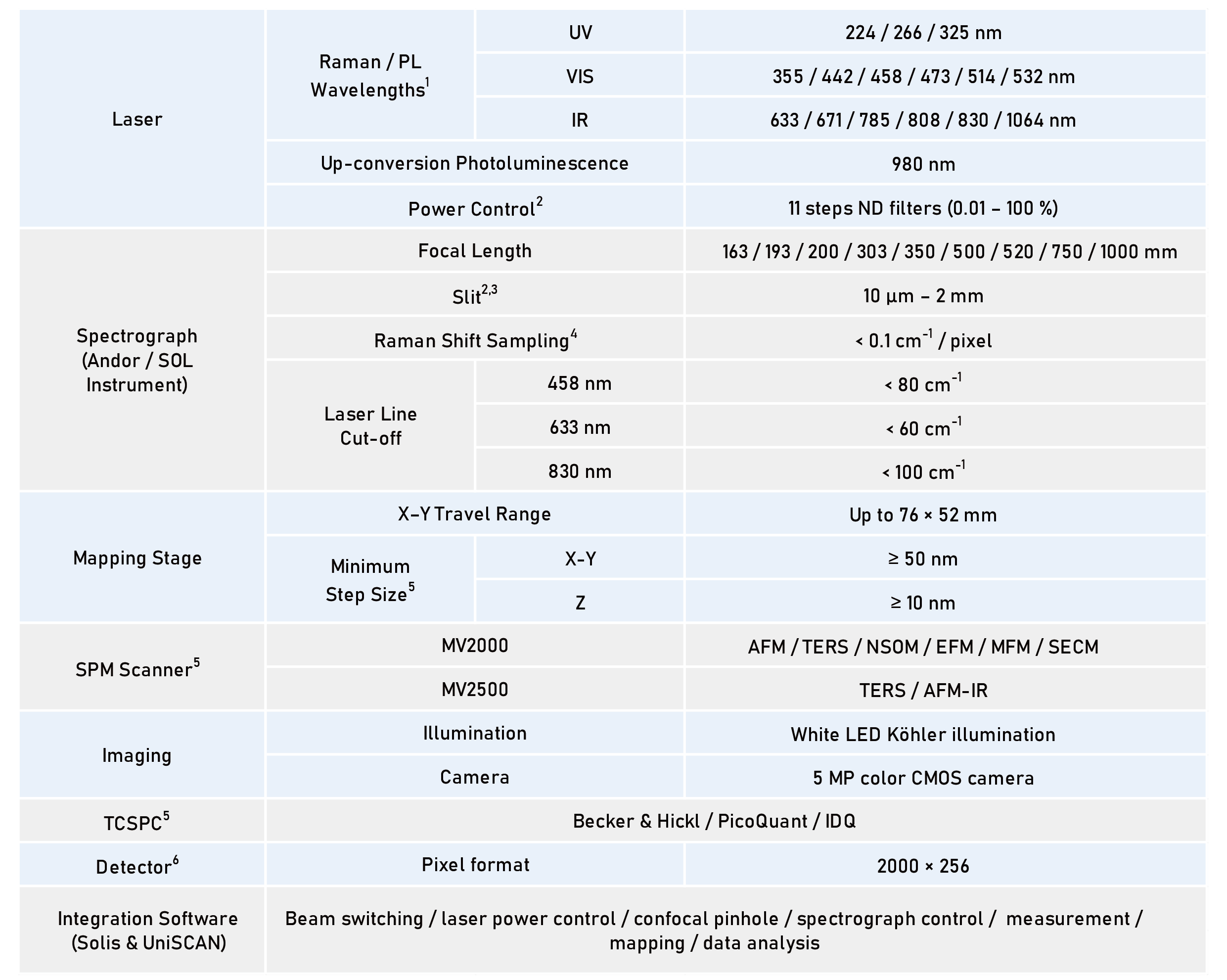

Specifications


  1. Other laser options are available upon request
  2. Auto control is available upon request
  3. Larger sizes are available upon request
  4. At 633 nm, 1800 g/mm, 1000 mm focal length
  5. Custom configurations are available upon request
  6. A high-sensitivity back-thinned TE-cooled CCD is provided as standard
