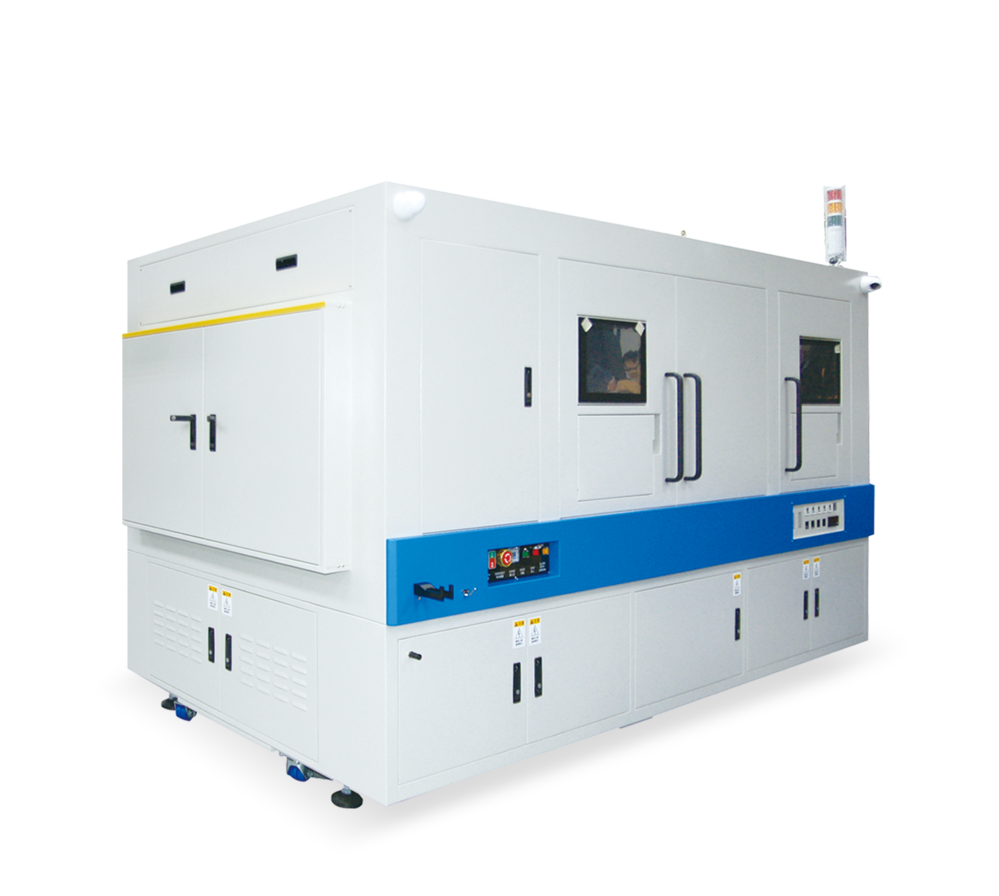

E&R B3000 Plus Laser Marking Machine​

Design for Advanced Panel Size Substrate Solution

“Next Generation system design, Highest Quality & Larger area inspection system, Dual head lasers offer Competitive, Reliable, & more Possibilities equipment”


Next Generation Design, Connect to the Future

Design for next generation substrate design with widther & longer type

B3000 Plus Runner design from 95*240mm up to 300*300mm

Suitable for X4L, X6L, Boat to Boat, & 300mm Panel size strip


Close to Real Status for Marking QC system

Able to carry Highest Pixels, preforming high resolution at QC Camera system

User in-line check quality with highest resolution see through monitor directly

Camera up to max 300*300mm scan area


Reliable Laser System, larger capacity loader system
Offer outstanding throughput performance

Carry Rofin Sinar Power Line  with Dual heads system

Up to 4 cassettes loader/unloader system


Type

Available

L/F

X

Substrate

O

Panel

O

Boat

O

Tray

X

*Panel – 300mm*300mm

Item

B3000 Plus

Machine size

3400x1525x1250

Load-unload System

Strip type

Boat to Boat

Panel

Runner size

W:   95-300mm

L:   150-300mm

Load-unload Q’ty

2-4

Warpage available

±5 mm

Position

Top

Position Accuracy and Repeatability

±50um

Carrier type

Belt with X-Y table


B3000 Plus Process Flow
