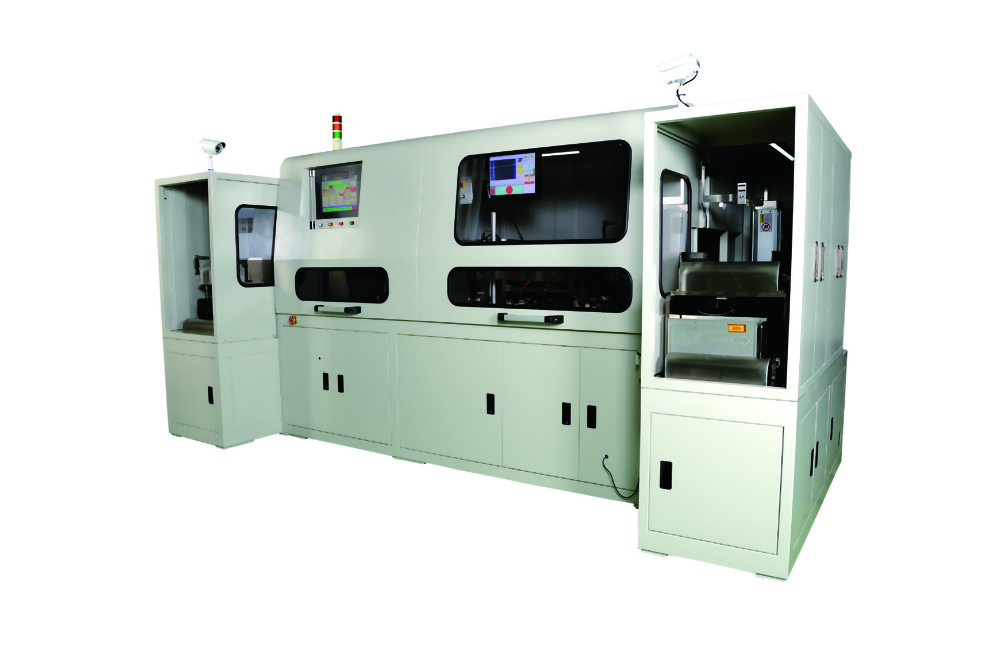

B3000
Machine Feature
-
Solution Substrate, Boat to Boat Application
-
Marking accuracy Repeatability +/- 0.075 mm
-
Working area: L=200mm~310mm，W=45mm~160mm
-
Marking Area: Max 300mm x 180mm (dual head)
-
Linescan System with auto shift adjustment control
-
Pin 1 orientation check
-
Warpage capability: ≦5mm
-
VPS (Vision Position System)
-
High flexibility for customization as optional
-
Quality Check System with 5M, 12M
-
Single, Dual, TWIN Laser System available
-
Addition 2D Reader System
-
2D Mark out function
-
SECs/GEM
-
Addition Pre / Post Cleaning, Brush, ESD System
-
Inline Flipping System (special for FCBGA to B/M Stage)
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
