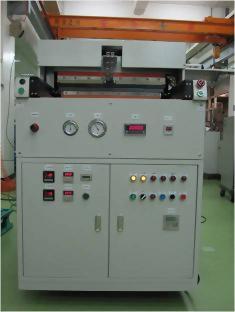

HH-46TON(380mm*560mm)​ Vacuum laminator​

FPC SBS Vacuum Lamination Machine​

  • Length : 1200㎜
  • Width : 860㎜
  • Height : 1650㎜
  • Working Height  : 1050㎜
  • Electrical :220v/60hz/3phase
  • Power consumption : 20KVA
  • Compressed Air : 6 kg/cm2
  • Air consumption : 10 L/min
  • Max Pressure : 30kg/cm2
  • Gross Weight : 1450 kg
  • Speed:110 sec/sheet
  • Capacity: 1322 ㎡ /month
  • Volume:L1.2 m*W  0.8 m
