• HH-60TON (500mm*610mm)​  Vacuum laminator​

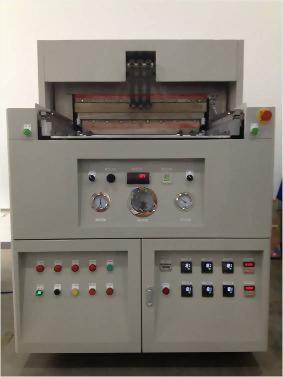

HH-60TON (500mm*610mm)​ Vacuum laminator​

FPC SBS Vacuum Lamination Machine​

  • Length : 1460㎜
  • Width : 1110㎜
  • Height : 1652㎜
  • Working Height  : 1156㎜
  • Electrical :220v/60hz/3phase
  • Power consumption : 18KVA
  • Compressed Air : 6 kg/cm2
  • Air consumption : 5 L/min
  • Max Pressure : 140kg/cm2
  • Gross Weight : 4600 kg
  • Speed:110 sec/sheet
  • Effective pressing area:500mm*610mm
